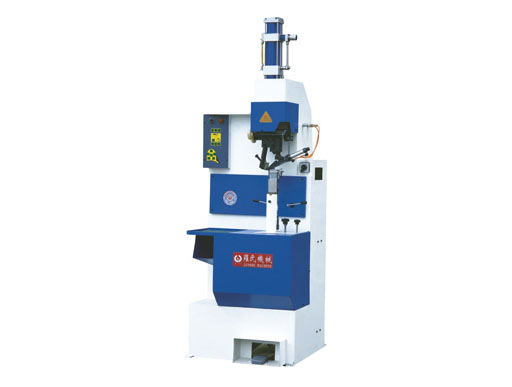

XDDG-BQ Semi-auto heel nailing machine
read：15028
| Technical Data: |
| |
|
Dimension |
L750×W800×H2100 mm |
|
Power |
0.2 kw |
|
Pneumatic pressure |
8 kgf/cm2 |
|
N·W |
415 kg |
|
Capability |
2000 pair/8hr. | |
| |
| |
| |
| Application: |
| |
| Suitable for clenching heelpieces of different kinds of men’sand women’s boots or shoes |
| |
| |
| |
| Features: |
| |
- It is the automatic heel nailing machine that is switched from air pressure to oil pressure type.The pressing rod can be adjusted by pressure during the twice pressing to be suitable for various shoes.
- In its circumference,6 tooth nails can be nailed,with one screw in the center.The naillength varies from 8 to 25mm,which can be nailed in set sequence.
- The nails can be nailed with inclination to avoid from going out of the heel.
- It is provided with safety device,which prevent operator from being damaged.
|
