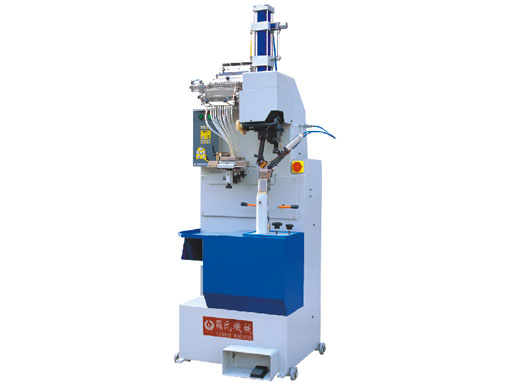

XDDG-Q Automatic pneumatic heel Nailing machine
read：14607
|
Dimensions(LWH) |
800×800×2150（mm） |
|
Productivity |
2000（Pairs）/8 （Hours） |
|
Weight |
412kg |
|
Air pressure |
0.6MPa |
Application: Suitable for clenching heelpieces of different kinds of men’s and women’s
boots or shoes
1. It's suitable for nailing process of all kind men shoes , ladies shoes and kids shoes.
2. Adopting PLC control units and tech imported, this performance of machine is
accurate and efficient.
3. Mechanical bar hold still the heel firmly, and never do harm to heels in any height.
4. Feeding box of nail can precisely settle nails range from 6mm to 8mm in order,
another mechanism convey nails to the working site automatically.
5.External device for previewing nailing depth from the jack-seat, control panel
for choose of nailing positions and sequencing. Nail will be drove at a special angle
which can enhance the fastness and eliminate the risk of piercing through heel.
