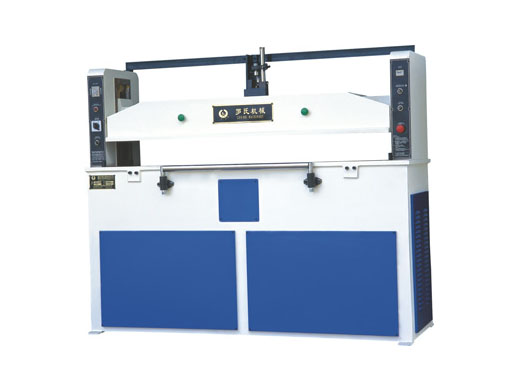

XCLP2-250 hydraulic plane cutting machine
read：14992
| Technical Data: |
| |
|
Maximum momentum |
250KN 300KN |
|
Cutting Area |
1600×500mm 1600×500mm |
|
Power |
2.2kw 2.2kw |
|
Stroke |
100mm 1700kg |
|
N.W |
1500kg 1700kg |
|
Dimension |
L1850×W650×H1330mm
L1850×W650×H1330mm | |
| |
| |
| |
| Application: |
| |
| The machine is applicable for cutting operation for paperboard,textile,leather.forming materials,plastic materials,rubber,floor and carpet etc.industries by die cutter. |
| |
| |
| |
| Features: |
| |
- The maximum and minimum points of die cutting can be easily,accurately and rapidly set and adjusted.
- With fine adjustment device,the best travel can be achieved and the service life of die cutter and cutting board can be prolonged.
- Simple operation,labor saving,powerful cutting force and low malfunction rate.
- The cutting travel can be freely adjusted within the range of 50-140mm for cutting of single layer or multi-layer materials.
- All parts are provided with self-lubricating bearings with long service life.
|
