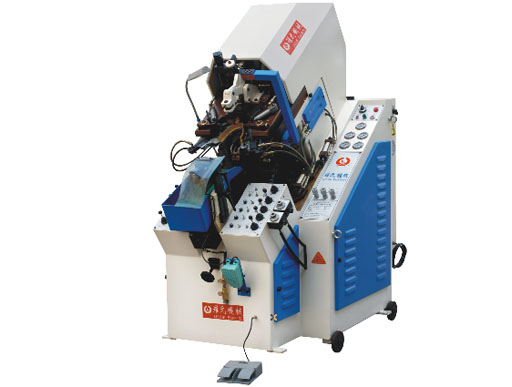

LS-737E oil hydraulic automatic toe lasting machine
read：16939
|
Power |
1.8kw |
|
Electrothermal power |
1W |
|
Working pressure |
50kgf/cm2 |
|
Output |
1800-2000pair/8hr |
|
Weight |
1135 kg |
|
Mechanical dimensions |
1710 950 1950mm |
|
Packing dimensions |
1760 1000 2160mm |
|
Hydraulic oil quantity |
110 liters |
1. Full-feature tensioner and wiper with special trace can ensure that the shoe surface presses
tightly against the last after bonding without any angles, therefore adding to beauty and enh
ancing the bonding quality.
2. The toe cap pressing mechanism adopts adjustable two-section type pressure with the design
of master and slave cylinders, which enables the attaching during the lasting process of shoes
and wipers and the final attaching to achieve the best effect and ensures even last angles.
Moreover, the method of two types of pressing of pressing head for one time pressing can make
the lasting process be smooth. When locating, in comparison with soft leather materials, the
occurrence of lengthening lasting distance and pull-down of front stop is not so easy to happen.
3. Each group of claws has independent automatic pull-down function. According to the tightness
of shoe surface, the required claws can be selected for automatic pull-down action and the pull-
down depth can be adjusted if necessary.
4. The nine-claw independent design can be separately adapted to the lasting of toe cap of any form,
The principle of automatic balancing and automatic descending when the wiper moves forward is
also the feature to increase product quality and enhance output.
5. The internal and external supporting tables have the functions of two-section rising for
coordinating with heel seat supporting operation to prevent the occurrence of sliding of shoe last.
6. No tool is required during the adjustment of lasting action. It is provided with scale and location
rule indication.
7. The selector switches for various actions are necessary for operations, and can be rapidly switched.
8. The accessorial wiper is used to coordinate the nine-claw toe cap to make the lasting length of toe
cap be lengthened to the front middle turning corner. After the lasting, the toe cap and shoe surface
can be more tightly attached with the shoe last.
tightly against the last after bonding without any angles, therefore adding to beauty and enh
ancing the bonding quality.
2. The toe cap pressing mechanism adopts adjustable two-section type pressure with the design
of master and slave cylinders, which enables the attaching during the lasting process of shoes
and wipers and the final attaching to achieve the best effect and ensures even last angles.
Moreover, the method of two types of pressing of pressing head for one time pressing can make
the lasting process be smooth. When locating, in comparison with soft leather materials, the
occurrence of lengthening lasting distance and pull-down of front stop is not so easy to happen.
3. Each group of claws has independent automatic pull-down function. According to the tightness
of shoe surface, the required claws can be selected for automatic pull-down action and the pull-
down depth can be adjusted if necessary.
4. The nine-claw independent design can be separately adapted to the lasting of toe cap of any form,
The principle of automatic balancing and automatic descending when the wiper moves forward is
also the feature to increase product quality and enhance output.
5. The internal and external supporting tables have the functions of two-section rising for
coordinating with heel seat supporting operation to prevent the occurrence of sliding of shoe last.
6. No tool is required during the adjustment of lasting action. It is provided with scale and location
rule indication.
7. The selector switches for various actions are necessary for operations, and can be rapidly switched.
8. The accessorial wiper is used to coordinate the nine-claw toe cap to make the lasting length of toe
cap be lengthened to the front middle turning corner. After the lasting, the toe cap and shoe surface
can be more tightly attached with the shoe last.
