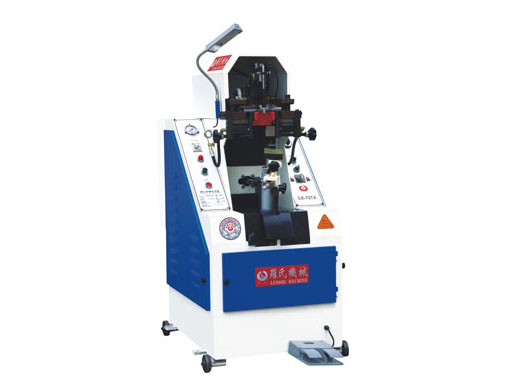

LS－727A oil hydraulic automatic heel lasting machine
read：16904
| Technical Data: |
| |
|
Power |
2 Hp |
|
Electrothermal power |
400 w |
|
Working pressure |
40 kgf/cm2 |
|
Weight |
580 kg |
|
Output |
2500 pair/8hr. |
|
Mechanical Dimension |
1100×760×1420 mm |
|
Packing Dimension |
1270×820×1680 mm |
|
Hydraulic oil quantity |
50 liters | |
| |
| |
| |
| Features: |
| |
- The machine is applicable to lasting of ordinary midsole and soft sole shoes with heel height below 180mm.
- The machine has lasting height fine adjustment device with easy adjustment and accurate location.
- It is applicable for various shoes with complete specifications of wipers and tensioners. The tensioner adopts chain type shoe embracement, which has excellent tensioning effect.
- The machine adopts the design of gear, rack and ratchet wheel, which can adjust the height of auxiliary supporting table,which is rapid and stable.
- With the design of second time ascending pressing, the supporting table for last coordinates the wiper heating device to enhance the lasting effect, make the finished products be even without angles and improve shoe quality.
- The last supporter has special ascending oil way design, which can absolutely control the set position during the lasting process.
|
