Dimension |
L800xW850xH1400mm |
Power |
2Kw |
Pneumatic pressure |
6Kgf/cm2 |
N-W |
275Kg |
Capability |
1500pair/8hr |
Features

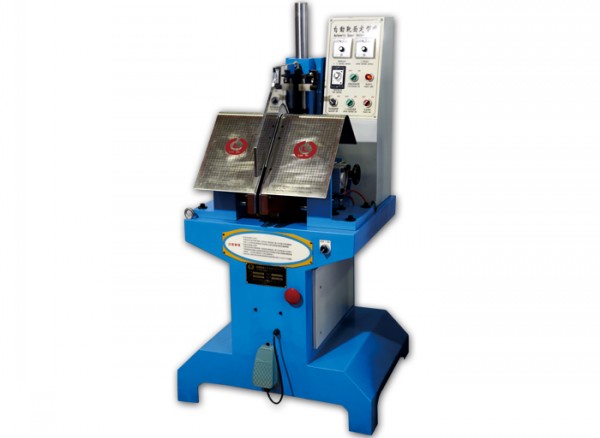

The machine adopts complete air pressure system design.
With simple operation, the digital display makes the adjustment convenient and easy.
One-step forming saves material cost.
Double curved blade board can be made according to customer requirements.
The machine has two functions, which can be double bending and single
bending when replacing the blade board (the machine is provided with
three blades).
It can be equipped with a steaming and softening structure to realize one-time
forming after the vamp is softened and ironed out.
It can be equipped with a manipulator structure to make the operation simpler
and the vamp hard to crimp.
