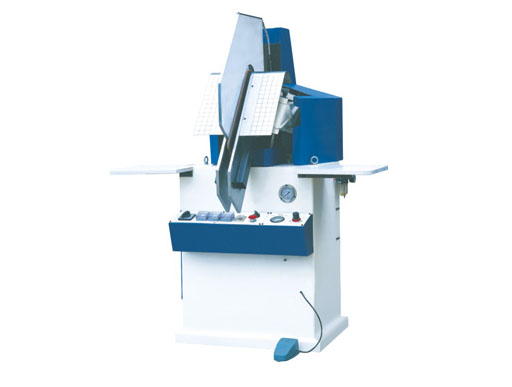

XCXYB-2 upper curve forming machine
read：13828
Technical Data:


Dimension

L1000×W1000×H15100 mm

Power

0.75 kw

Pneumatic pressure

6 kgf/cm2

N·W

280 kg

Electrothermal power

3 kw

Capability

1500 pair/8hr.




Application:

Application for extending and curve forming of upper and of shoes and boots,and is provided with steam wetting mechanism.



Features:

  1. The machine adopts oil and mixture system.The pull-down blade adopts oil pressure system(speed is stable and adjustable,which is suitable for the stretching of various leathers).
  2. The leather is stretched directly and becomes ideal warping shape after heated ,which makes the upper never be deformed.
  3. Simple operation.
  4. Upper of 14 inch boots can be formed.
