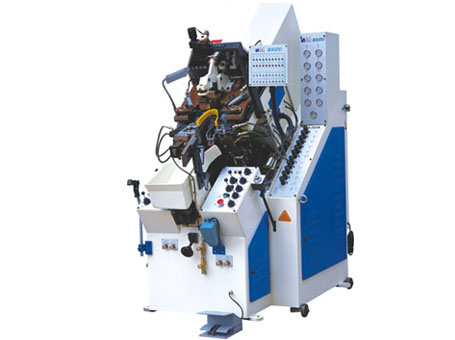

LS-747A oil hydraulic automatic toe lasting machine
read：16876
| Technical Data: |
| |
|
Power |
2 Hp |
|
Electrothermal power |
1 Kw |
|
Working pressure |
45 kgf/cm2 |
|
Output |
1800-2000 pair/8hr. |
|
Weight |
1160 kg |
|
Mechanical Dimension |
1710×950×1950 mm |
|
Packing Dimension |
1760×1000×2160 mm |
|
Hydraulic oil quantity |
110 liters | |
| |
| |
| |
| Features: |
| |
- Full-feature tensioner and wiper with special trace can ensure that the shoe surface presses tightly against the last after bonding without any angles, therefore adding to beauty and enhancing the bonding quality.
- The toe cap pressing mechanism adopts adjustable two-section type pressure with the design of master and slave cylinders, which enables the attaching during the lasting process of shoes and wipers and the final pressing of pressing head for one time pressing can make the lasting process be smooth. When locating, in comparison with soft leather materials, the occurrence of lengthening lasting distance and pull-down of front stop is not so easy to happen.
- Each group of claws has independent automatic pull-down function. According to the tightness of shoe surface, the required claws can be selected for automatic pull-down action and the pull-down depth can be adjusted if necessary.
- The nine-claw independent design can be separately adapted to the lasting of toe cap of any form. The principle of automatic balancing and automatic descending when the wiper moves forward is also the feature to increase product quality and enhance output.
- The internal and external supporting tables have the functions of two-section rising for coordinating with heel seat supporting operation to prevent the occurrence of sliding of shoe last.
- No tools is required during the adjustment of lasting action. It is provided with scale and location rule indication.
- The selector switches for various actions are necessary for operations, and can be rapidly switched.
- The accessorial wiper is used to coordinate the nine-claw toe cap to make the lasting length of toe cap be lengthened to the front middle turning corner. After the lasting, the toe cap and shoe surface can be more tightly attached with the shoe last.
- The five claws have the function of angle rotating separately, the shoe type can be switched rapidly.
- The nine claws can separately adjust the pressure, which can be adjusted according to the tensile rength of shoe surface and it is not easy to damage the shoe surface. The pressure of the whole machine can be also adjusted on the external surface of the machine.
- The claw disc has the two-section adjusting function, the two-claw part can be automatically switched according to the part of shoes.
|
