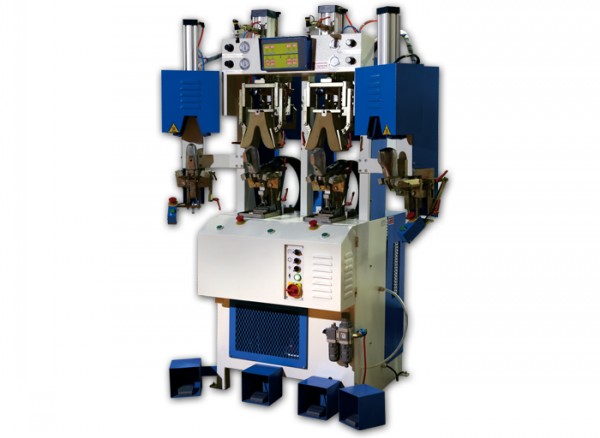

XCXB-G Automatic heel hot and cold forming machine
read：17450
| Technical Data: |
| |
|
Dimension |
L880×W1480×H1900 mm |
|
Pneumatic pressure |
5-7 kgf/cm2 |
|
N·W |
640 kg |
|
Power |
2.7 kw |
|
Capability |
1200-1800 pair/8hr. | |
| |
| |
| |
| Features: |
| |
- The machine is suitable for heel forming before lasting for various high class men and women shoes, riding roots, sports shoes and leisure shoes of KP materials.
- It is provided with various functions such as wiper type and shoe surface adjustable type. The wiper is made of special imported steel, which has good anti-abrasive performance and excellent effect after wiping.
- The tilting last is convenient to operate. The internal and external molds can be made according to the last so as to achieve the most perfect forming effect.
- The project lamp can achieve the most accurate forming position, which can adjust the fixture to make the shoe surface attach with the last completely.
- It adopts environmental protection water refrigerating system, with rapid refrigerating speed and good effect, and refrigerating temperature of -20℃
- After forming, the lining, rubber sheet and shoe surface are closely bonded without cripple, deformation and blistering.
|
